The ejectors for NaOH solution (sodium hydroxide) are devices designed for moving the fluids necessary for ionic filters regeneration and / or solution dilutions, by aspiration of the NaOH concentrated solution from the vessels, with input water and overflow of the diluted solution.

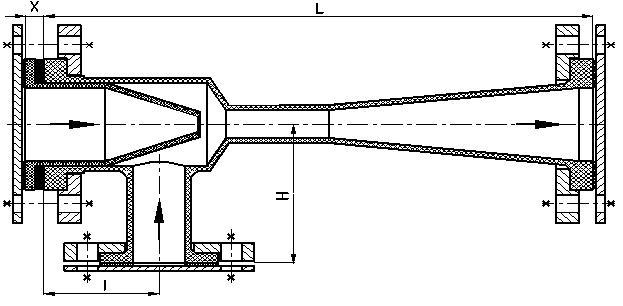

The ejector has the following components:
– Body, cylindrical mixing chamber and reinforced fiberglass resin air nozzle;
– Fittings with free flanges.

The free flanges, the screws and the nuts are made of carbon steel.

The ejectors can be mounted vertically or horizontally.
The ejectors for NaOH solution (sodium hydroxide) are manufactured in 10 sizes, respectively 4 nominal diameters, depending on the flow rate of the overflowed fluid.

Technical characteristics

Working fluid

H2O + NaOH
input water
suction NaOH solution  28 ÷ 50%
overflow diluted solution 2 ÷ 6%

Maximum working pressure

6 bar
input 4,5 ÷ 6 bar
suction >  0,2 bar
overflow 1,5 ÷ 2,5 bar

Working temperature

5 ÷ 95ºC

Mounting position

horizontal or vertical

Code

Flow
Q (m3/h)

Flange dimensions
Dn Input/Suction/Overflow

L
(mm)

X
(mm)

l
(mm)

H
(mm)

EjNaOH 4

4

50 / 25 / 50

332

12

80

120

EjNaOH 6

6

50 / 25 / 50

320

12

80

120

EjNaOH 8

8

65 / 32 / 65

425

12

90

130

EjNaOH 10

10

65 / 32 / 65

425

12

90

130

EjNaOH 12

12

80 / 40 / 80

506

12

100

140

EjNaOH 16

16

80 / 40 / 80

506

12

100

140

EjNaOH 20

20

80 / 50 / 80

506

12

100

140

EjNaOH 25

25

80 / 65 / 80

476

12

100

140

EjNaOH 32

32

100 / 50 / 100

617

12

120

150

EjNaOH 40

40

100 / 50 / 100

617

12

120

150
