Inferior collector

Inferior collector


Category:

Code: Collector ØD (ØD = diameter of the filter on which is mounted)

The collectors are designed to uniformly collect the regeneration solutions, working fluid or circulating water in the media from the filters.

The collectors are made in various types, depending on the diameter of the filter and the solution flow that will be circulated.

At request, there can be ordered collectors or separate components (as spare parts for existing collectors in filters).

Technical characteristics

Working fluid

demineralized or softened water

Regeneration fluid

HCl solution – concentration 5 ÷ 8 %
NaOH  solution – concentration 3 ÷ 5 %
H2SO4  solution – concentration 0,8 ÷ 5 %
NaCl solution – concentration 8 ÷ 12 %

Working pressure

6 bar

Test pressure

10 bar

Working temperature

max. 80°C

Slots dimensions

0,2 ± 0,050mm; 0,4 ± 0,050 mm

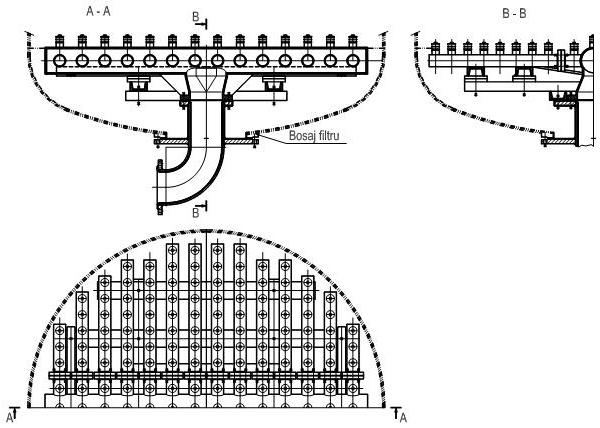

The inferior collector contains the following components:
– Central collector (made of fiberglass reinforced resin) provided with filter nozzles type RD 36×0,2 – M24*;
– Distributing pipes (made of fiberglass reinforced resin) provided with filter nozzles type RD 36×0,2 – M24*;
– Support elements (made of rubber coated steel);
– Assembly elements (made of stainless steel).

* other nozzles, with different sections, can be mounted
